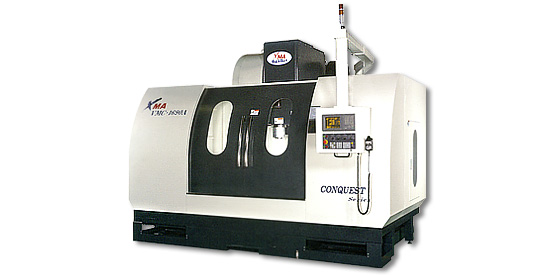

Item/Model
Unit
VMC-1890A
VMC-2090A

　　Stroke and Working Table
X axis travel
mm
1800
2000
Y axis travel
mm
900
900
Z axis travel
mm
700
700
From main shaft end to workbench center
mm
250-950
250-950
Table Dimension (W x D)
mm
2100x970
2300x970
Table Load capacity
kgs
2500
2800

　Speed and Enter to
Main shaft Speed and Motor
rpm
4000rpm(6000rpm)
4000rpm(6000rpm)
Fast Moves(X/Y/Z)
m/min
10
10
Slice to pare into give the rate(X/Y/Z)
m/min
10
10

　Change the knife the system

Cutter Type
-
BT-50(CAT-50)
BT-50(CAT-50)
Max. cutter weight kg
kgs
15
15
Max. cutter diameter mm
mm
110
110
Max. cutter length mm
mm
300
300

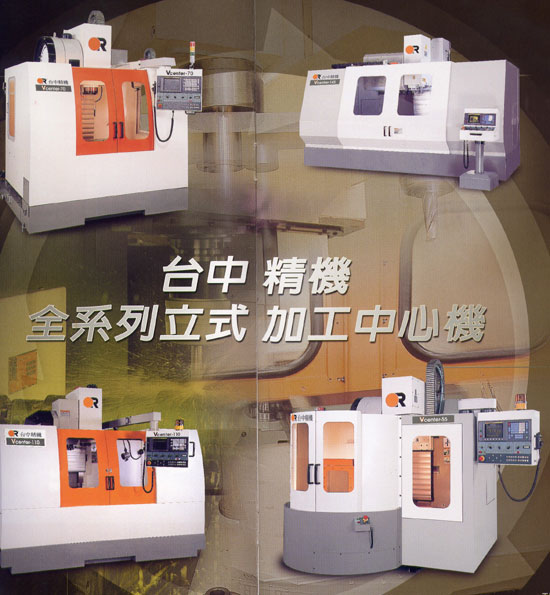

Item
Vcenter-55
Vcenter-70
Vcenter-85A/B/C
Vcenter-102A/B/C
Displacement
X- displacement mm
550
700
850
1020
Y- displacement mm
460
480
520
520
Z- displacement mm
460
510
560
560
Workbench
Size of workbench mm
800×460
800×460
1100×510
1100×510
Max. load of workbench kg
300
500
750(VC-85A/C)
1000(VC-85B)
750(VC-102A/C)
1000(VC-102B)
Main shaft
Main shaft taper
BT-40
BT-40
BT-40
BT-40
Motor power (continuous/30 min)KW(AC)
5.5/7.5
5.5/7.5
5.5/7.5
7.5/9
Main shaft speed rpm
8000
8000
8000(VC-85A)
6000(VC-85B/C)
8000(VC-102A)
6000(VC-102B/C)
Speed
X/Y/Z quick feedFixed speed m/min
30/30/24
30/30/24
24/24/20(VC-85A)
20/20/18(VC-85B)
24/24/18(VC-85C)
24/24/20(VC-102A)
20/20/18(VC-102B)
24/24/18(VC-102C)
Cutter
Max. cutter length mm
250
250
300
300
Max. cutter weight kg
7
7
7
7
No. of cutters in storage
24(Disk)
24(Disk)
24(Disk)
24(Disk)
Max. cutter diameter(no neighboring cutter) mm
76(125)
76(125)
76(125)
76(125)
Cutter change time sec.
2.5
2.5
2.5
2.5
Machine
Occupancy dimension Mm
1955×2350
2090×2350
2450×2400
2750×2400
Max. machine height mm
2601
2651
2640
2640
Item
Vcenter-105
Vcenter-125
Vcenter-145

Displacement
X- displacement mm
1050
1250
1450

Y- displacement mm
560
600
700

Z- displacement mm
560
610
700

Workbench
Size of workbench mm
1400×550
1400×550
1650×650

Max. load of workbench kg
800
800
2200

Main shaft
Main shaft taper
BT-40
BT-40
BT-40

Motor power (continuous/30 min)KW(AC)
7.5/9.0
7.5/9.0
11/15

Main shaft speed rpm
6000
6000
6000

Speed
X/Y/Z quick feedFixed speed m/min
24/24/18
24/24/18
18/18/15

Cutter
Max. cutter length mm
300
300
400

Max. cutter weight kg
7
7
15

No. of cutters in storage
24(Disk)
24(Disk)
24(Disk)

Max. cutter diameter(no neighboring cutter) mm
76(125)
76(125)
110(200)

Cutter change time sec.
2.5
2.5
3

Machine
Occupancy dimension Mm
3200×2625
3500×2838
3800×3765

Max. machine height mm
2895
2920
3029
