Item |

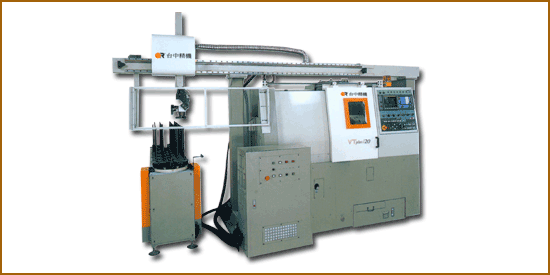

VTplus-20 |
VTplus-15 |
Table
surface rotating diameter/ movable door rotating diameter
mm |
Φ500 |
Φ500 |
Max.
cutting diameter mm |
Φ260 |
Φ260 |
Saddle
rotating diameter mm |
Φ265 |
Φ265 |
Horizontal
max. rotating diameter mm |
20+130 |
20+130 |
Vertical
max. rotating diameter mm |
320 |
320 |
Distance
between two centers mm |
405 |
420 |
Quick
feed (x/z axis) m/min |
24/24 |
24/24 |
Nose
end of main shaft |
A2-6 |
A2-5 |
Main
shaft(highest speed) rpm |
4200(3500) |
6000 |
Main
shaft bore mm |
Φ62 |
Φ52 |
Hydraulic
keeper inch |
8 |
6 |
Hydraulic
keeper pipe diameter mm |
Φ52 |
Φ40 |
No.
of cutter holders |
8 |
12 |
Main
shaft motor kw |
7.5/9 |
5.5/7.5 |
